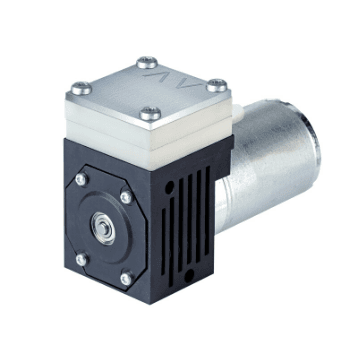

Diaphragm Liquid pump 6313
Diaphragm Liquid pump 6313

Diaphragm Liquid pump 6313

SKU: 63130004

Exclusief btw en verzendkosten.
Max. Vacuum: -700 mbar

? Zelfaanzuigend ? Drooglopend ? Lekvrij ? 0.35 l/min debiet ? -700 mbar vacu?m ? 4 bar druk ? 24VDC

Thomas Gardner Denver 6313 Series Vloeistof membraanpomp ? 63130004 | 0.35 l/min 24VDC

De Diaphragm Liquid pump 6313 ? 0,35 l/min ? 24V (SKU: 63130004) is een hoogwaardige vloeistof membraanpomp uit de 6313 Series van Thomas Gardner Denver. De membraantechnologie biedt zelfaanzuigend, drooglopend en lekvrij pompen van vloeistoffen.

Technische specificaties

  • Debiet: 0.35 l/min
  • Max. vacu?m: -700 mbar
  • Max. druk: 4 bar
  • Voeding: 24VDC
  • Medium: Vloeistof
  • Dichting/Materiaal: EPDM/PTFE/FFKM
  • Gewicht: 150 g
  • Technologie: vloeistof membraanpomp, olievrij

Toepassingen

OEM-instrumentintegratie, precisie vloeistofhandling, dosering en laboratoriumautomatisering.

Neem contact op met Olmia.nl voor advies over de Thomas Gardner Denver 6313 Series.

Weight 150 g
Medium

Pressure (bar)

4

Vacuum (mBar)

Vacuum (%)

69

Liquid Flow (ML/min)

350

Voltage

24VDC

Applications

OEM & Instrument integration

Pump Series

6313 Series

Vacuum mBar (abs.)

313

Pump Type

Liquid Diaphragm Pumps

Seal Material

EPDM/PTFE/FFKM
